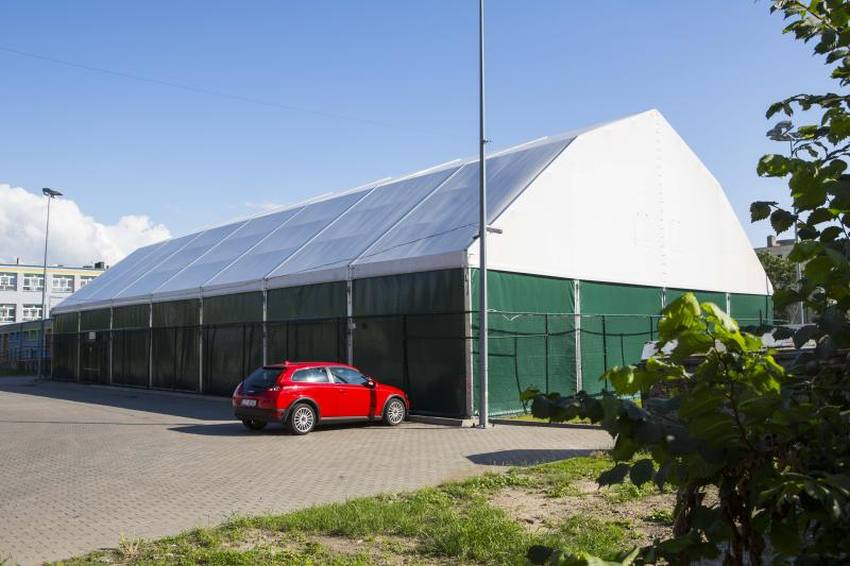

Indoor tennis court 40x75x5m tent
Tennis Court tent Canopy (Mansard Tent Hall) — a cost-effective alternative to traditional sports halls and inflatable tennis courts!
- Width: 40.00m
- Length: 75.00m
- Eaves height: 7,00m
- Area: 3000m 2
Quick installation — mobile solution — groundworks are not required.
Statics: EUROCODE-atested, according to DIN EN 13782 for temporary structures, no TÜV
profile dimensions: DELTA, 304x136x6 / 10mm
the walls made of trapezoidal sheet metal
Roof: PVC-coated on both sides and painted polyester fabric, temperature-stabilized, from Sattler AG, flame retardant to DIN 4102 B1 / M2, weight 670g / m 2
Scaffolding: non-anodised aluminum profiles manufactured according to DIN 17615, aluminum alloy according to DIN 6005AWT6
Steel elements: hot-dip galvanized, manufactured in accordance with DIN18800-7 SLV TÜV Halle / DIN EN ISO 3834-3 (large welding test)
Extra orderable – prices on request:
Window variants (number per page) – Sliding gate / roller door
– steel doors / roller doors
– floor with aluminum base impregnated / painted spruce
– condensation protection, heating, lighting
– different color variants, monochrome or striped without surcharge
– with / without printing
– roof partially / fully transparent
— pumped, inflatable roof insulation
